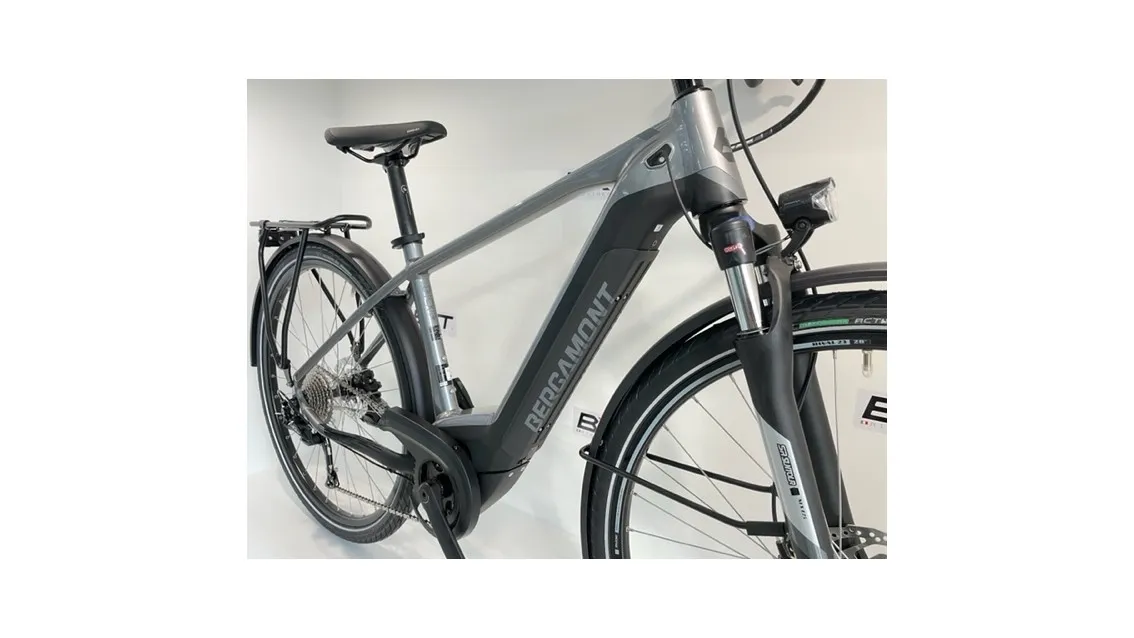

| Telaio | 28", ultra lite AL-6061 tubing, PowerTube battery |

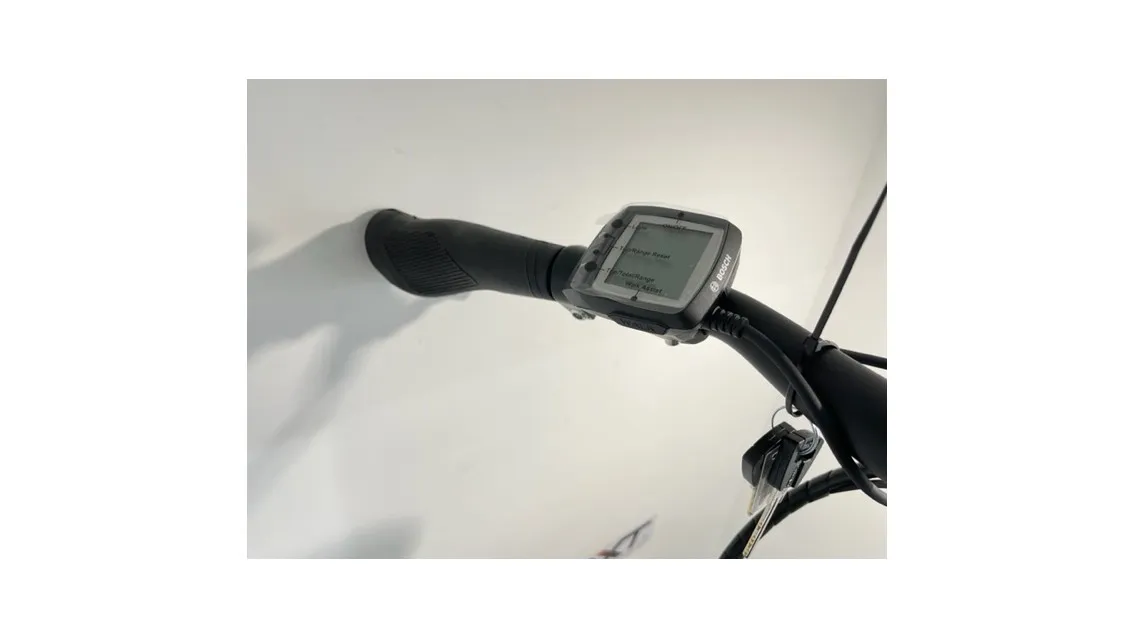

| E-drive system | Bosch Active Line Plus, Gen. 3, 250 W, 36 V, max. 25 km/h. Batteria PowerTube, 36 V Li Ion, 500 Wh. Display Bosch Purion. |
| Forcella | Suntour NEX E25, 63mm |
| Cambio | Shimano RD-M3100, Shadow 9v |
| Comandi cambio | Shimano SL-M3100, 1x9-speed, rapidfire plus-shifter |
| Guarnitura | FSA CK-200, 38t |
| Cassetta pignoni | Shimano CS-HG201-9, 11-36t |
| Catena | KMC e9S |
| Freni | Shimano BR-MT200, hydraulic disc brake. Rotori Shimano SM-RT10, 180 mm / Shimano SM-RT10, 160 mm |
| Ruote | Ryde Rival 23 disc, eyelets |
| Mozzo Anteriore | Shimano, centerlock, disc, quick release |
| Mozzo Posteriore | Shimano, centerlock, disc, quick release |
| Copertone ant. | Schwalbe Energizer Active Plus, reflective stripe, 47-622Tube: Schwalbe AV17A Light |
| Copertone post. | Schwalbe Energizer Active Plus, reflective stripe, 47-622Tube: Schwalbe AV17A Light |
| Manubrio | BGM Pro, riserbar, backsweep: 15°, rise: 5 mm |
| Attacco | BGM Pro, adjustable |
| Reggisella | BGM Pro |
| Sella | Selle Royal Essenza, gent |

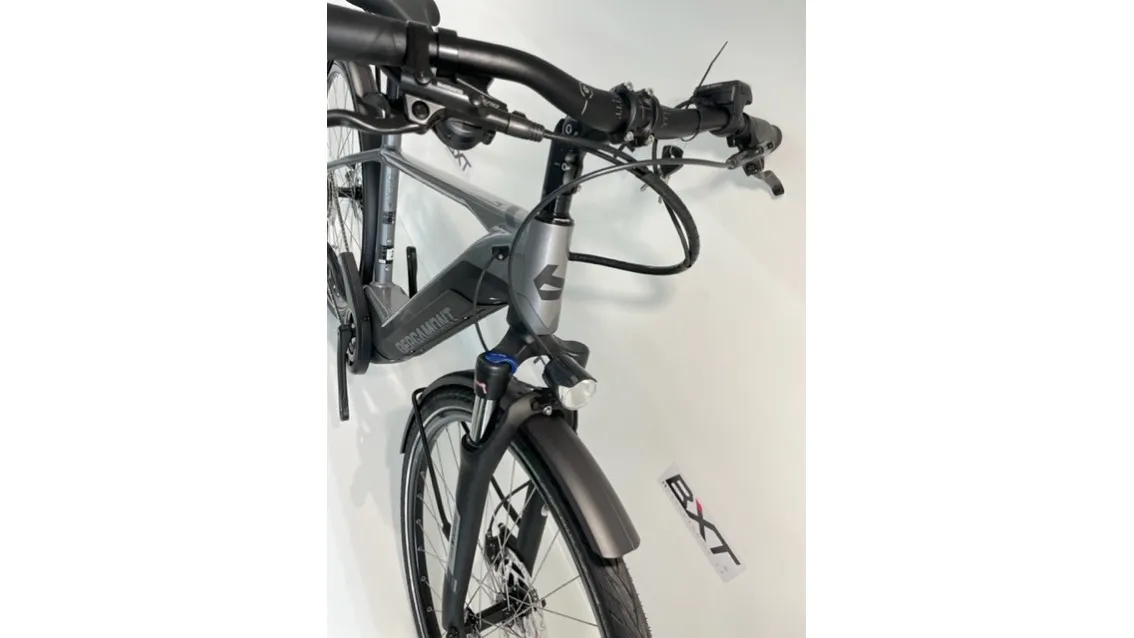

| Impianto luci | Front: Herrmans H-Black MR4, LEDRear: Herrmans H-Trace E, LED |

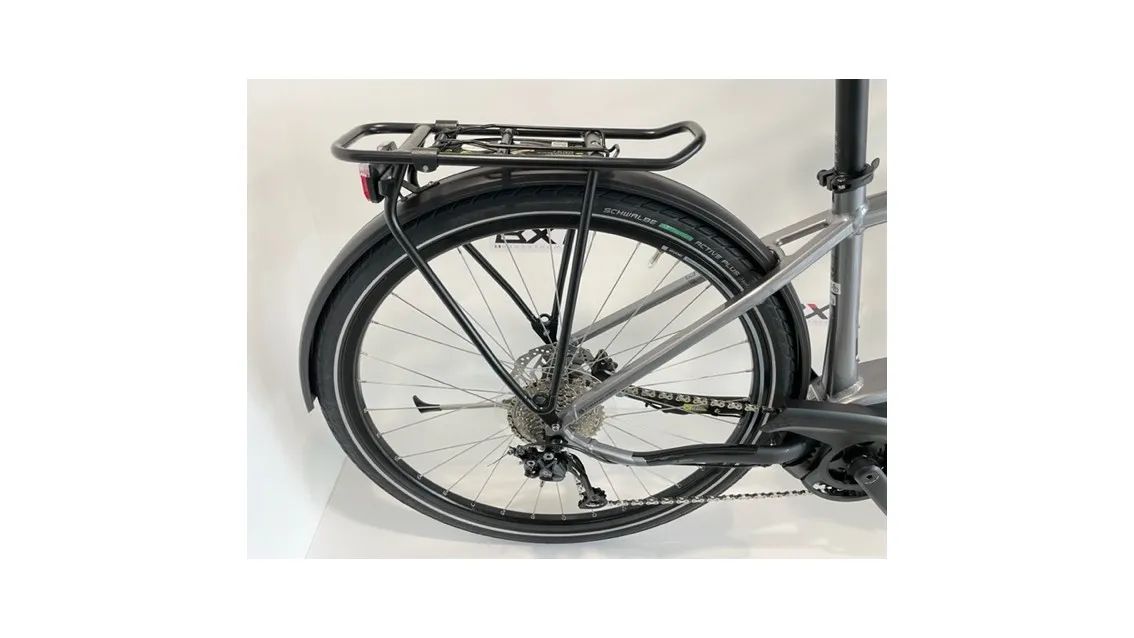

| Portapacchi e parafanghi | Fender: Racktime WingeeCarrier: Racktime / BGM Trekking Pro, Snapit 2.0 System, integrated fender mount |
| Misura | S/48, M/52, L/56, XL/60 |
| Anno | 2022 |

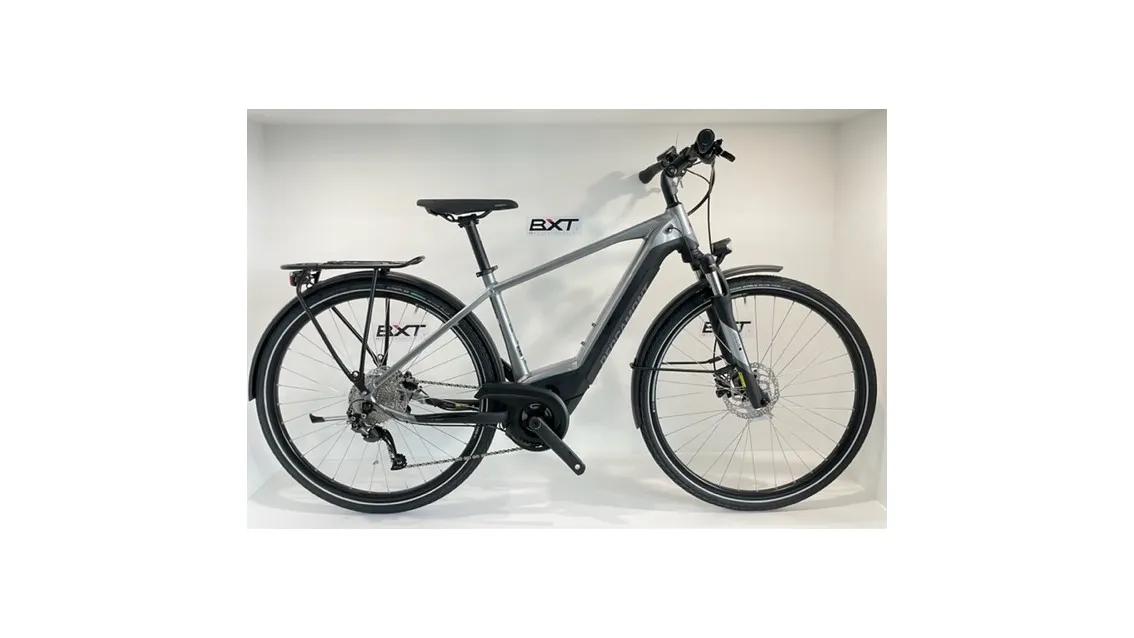

BERGAMONT E-Horizon Tour 500 Gent
